Aerosol fire suppression system is a versatile and cost-effective solution for land fire protection.
Due to their fast response time, compact modular design, low fire extinguishing concentration, and environmental safety, Stat-X fire suppression systems may be used in critical applications across a wide range of industries, especially in areas where weight and space savings are important.

Energy storage and battery storage
Power Generator (wind turbine, gas turbine, generator rooms)
Oil and Gas
Electrical room and cabinets
Server Room
Transport (bus, train, tunneling)
Manufactory Machines
Duct Protection
Telecommunication
Maritime
Industrial
Military

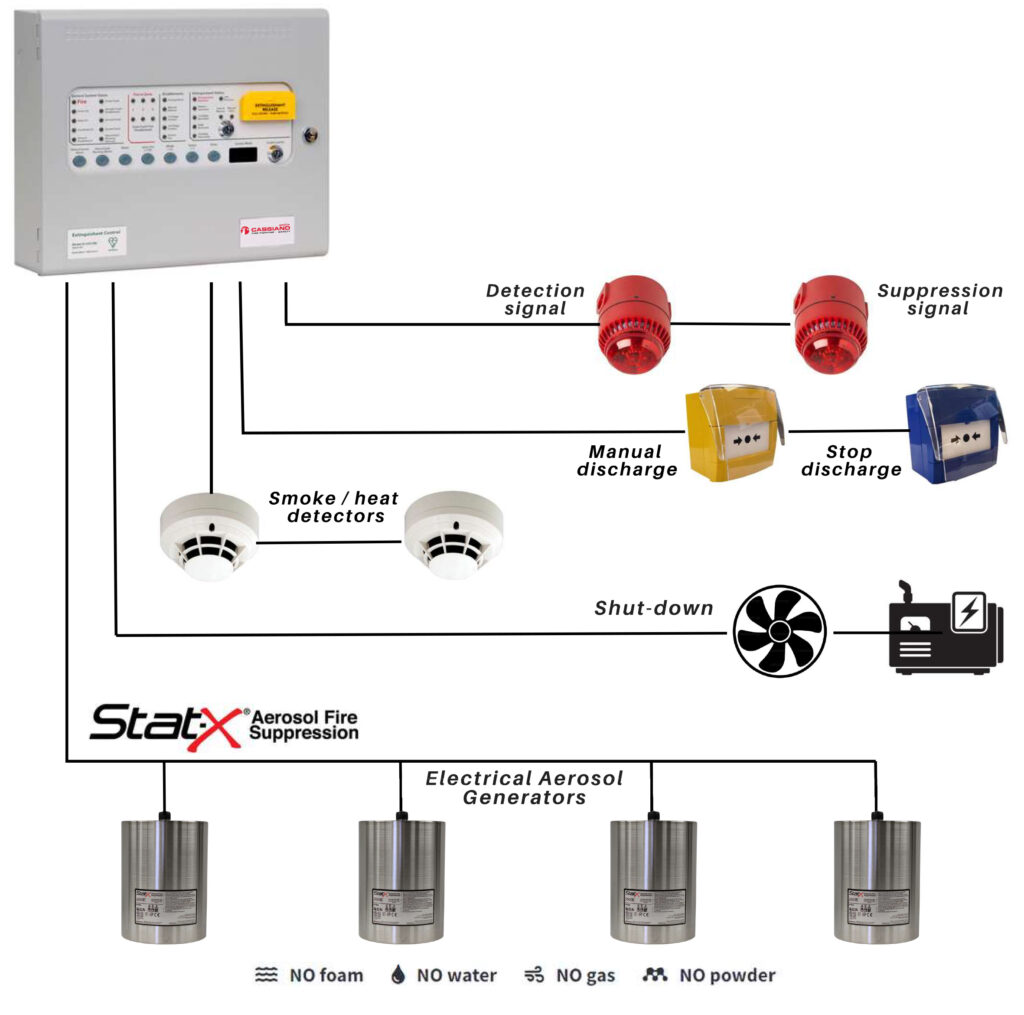

Land Extinguishant Control Panel
230V AC +10%/-15%
Size (mm): 385 x 310 x 90

Features:

  • Any single zone or any combinations of zones can be configured to release
  • Configurable first stage sounder delays
  • Configurable detection delays
  • Zero time delay upon manual release option
  • Compatible with I.S. barriers
  • Non-latching zone input option to receive signals from other systems such as aspirating equipment
  • Countdown timer shows time remaining until release
  • UL and FM Approved version also available
  • Supports up to seven, four-wire status indicators
  • Configurable extinguishant delays up to 60 seconds in 5 second steps
  • Configurable extinguishant duration up to 5 minutes in 5 second steps
  • Supports up to seven, four wire status indicators
  • Built in Extract Fan control
  • Approved and certified to EN12094-1, EN54-2 and EN54-4

Stat-X aerosol technology is different:

  • NO distribution piping, manifold, or nozzles
  • NO floor space requirement or shoring up for weight
  • NO special handling for compressed gas cylinders
  • NO venting or ceiling tile clips for discharge forces
  • NO solenoid actuators, control heads, or hoses
  • NO water drains or pipe freeze protection
  • NO system pressurization or room integrity tests

Generator approvals, listings, and certifications:
